CMW Series Compressor For Oxygen Concentrator
As one of the compressor for oxygen concentrator manufacturers, suppliers, and exporters of mechanical products, We offer compressor for oxygen concentrator and many other products.
Please get in touch with us for details.
Mail:sales@compressor-for-oxygen-concentrator.com
Manufacturer supplier exporter of compressor for oxygen concentrator.

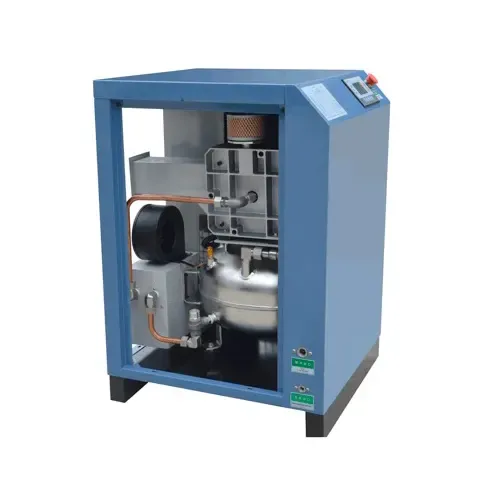

CMW Series Compressor For Oxygen Concentrator
Compressor for oxygen concentrator is a key components in producing concentrated oxygen for medical and industrial use. Oxygen concentrators are used to extract oxygen from the surrounding air and concentrate it for use by patients with respiratory diseases or industrial applications requiring high-purity oxygen.
The compressor in an oxygen concentrator operates by compressing air from the surrounding environment and then filtering and purifying the air to produce high-purity oxygen. Two main types of compressors are used in oxygen concentrators: piston compressors and diaphragm compressors.
CMW Series Compressor For Oxygen Concentrator Parameters:
| Model | Work pressure | FAD | Power | Noise | Weight | Cooling water quantity | Dimension L×W×H |
Outlet Diameter | |||
| MPa | Psi | m³/min | cfm | kW | HP | dB(A) | kg | T/h | mm | mm | |
| CM55G | 2.0-3.0 | 290-435 | 6.3 | 222 | 55 | 75 | 70 | 1950 | 18 | 2750×1250×1480 | DN32 |
| CM55G | 2.0-4.0 | 290-580 | 5.2 | 184 | 55 | 75 | 70 | 1950 | 18 | 2750×1250×1480 | DN32 |
| CM75G | 2.0-4.0 | 290-580 | 6.3 | 222 | 75 | 100 | 70 | 1960 | 18 | 2750×1250×1480 | DN32 |
| CM110G | 2.0-4.0 | 290-580 | 10.2 | 360 | 110 | 150 | 72 | 2630 | 24 | 3000×1350×1540 | DN32 |
| CM130GPV | 2.0-3.0 | 290-435 | 5.4-13.5 | 128-455 | 55 | 75 | 75 | 3000 | 35 | 2500×2000×1550 | DN32 |
| 75 | 100 | ||||||||||
| CM150GPV | 2.0-4.0 | 290-580 | 5.4-13.5 | 191-477 | 75 | 100 | 75 | 3100 | 35 | 2500×2000×1550 | DN32 |
| 75 | 100 | ||||||||||
| CM242GPV | 2.0-4.0 | 290-580 | 9.6-24.0 | 339-847 | 110 | 150 | 75 | 3950 | 50 | 2760×2250×1670 | DN40 |
| 132 | 180 | ||||||||||
CMW Series Compressor For Oxygen Concentrator Feature:
The new model is 15%-20% more energy efficient than piston air compressors. After the piston ring and cylinder body wear, it saves 30%-40% more power than the piston air compressor. Two years of saving is equivalent to the cost of buying a machine.
Box design, no vibration, low noise, small volume.
Fewer consumables, low cost.
Environmental protection, oil-free design, ISO08573-1 oil-free certification.
Isothermal compression, low exhaust temperature, and low water content of compressed air.
We are one of the best food compressor suppliers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
Compressor For Oxygen Concentrator Application:
